KEMMLER PSK63-DSDNN-00065-12 external insert holder
Brand: KEMMLER
ISO: 26623-1
Art.-no. 23106543
Manufacturer article no. C6.DSDNN.00065.12
Application
Accommodates turning tool holders
Execution
- Alloyed case-hardening steel with a core tensile strength of at least 950 N/mm².
- Case-hardened HRC 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
- black-oxide and precision-ground finish
- Coolant pressure up to 100 bar
- One turning tool holder, four possible uses: left - right - forehead - overhead.
- Spray nozzles can be closed for tools with internal coolant supply.
Advantage
- Polygonal hollow shank taper with planar contact face
Delivery
1x PSK63-DDNN external insert holder
 | |
Brand | KEMMLER |
EAN | 4250000009015 |
Manufacturer Part Number | C6.DSDNN.00065.12 |

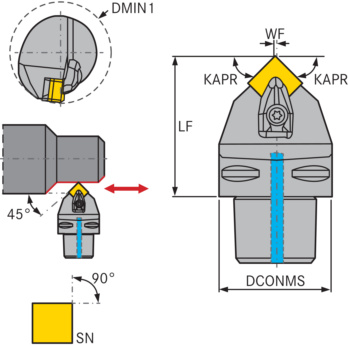

Tool holding device (DCONMS) | PSC 63 |
Tool holding device type | Clamp holder outside |
Projecting length (LF) | 65 mm |
ISO | 26623-1 |
Suitable for indexable inserts (ISO Inserts) | SN.. 1204.. |
Offset range (WF) | 0.3 mm |
External collar diameter | 63 mm |
Setting angle (KAPR) | 45 Degree |
Coolant supply | Internal axial |
Harmonized System Code | 84661031 |
Gross Weight | 1.500 kg |
Certificates/ Documents (1)
