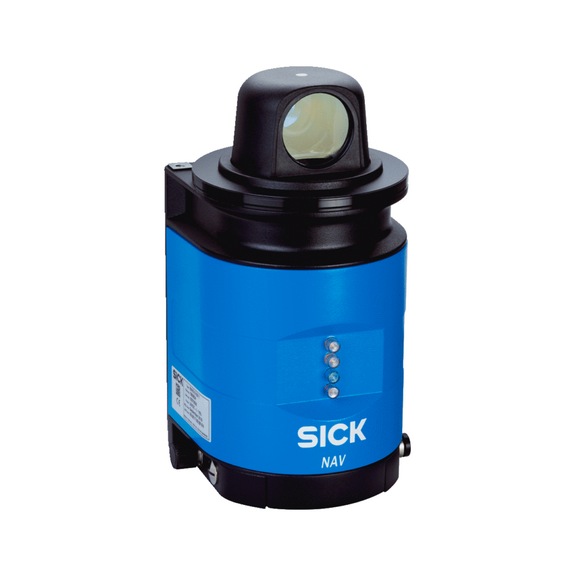

2D lidar sensor nav310-3211 / Interior
Art.-no. 9405849
Application
Contour navigation of automatic navigation vehicle at cargo entrance and exit
Execution
- Connection type 3 x M12 plug / socket
Supply voltage 24 V DC... 24 V DC, ± 15%
Power consumption 36 w
Shell die cast aluminum
Shell color light blue (RAL 5012)
Enclosure protection grade IP65
Protection class III
Weight 2.4 kg
Dimensions (L x W x H) 115 mm x 120.5 mm x 222 mm
Advantage
- Stable performance, fast transmission speed, almost any shape can be recognized
Delivery
14
Gross Weight | 0.000 kg |
Certificates/ Documents (1)
