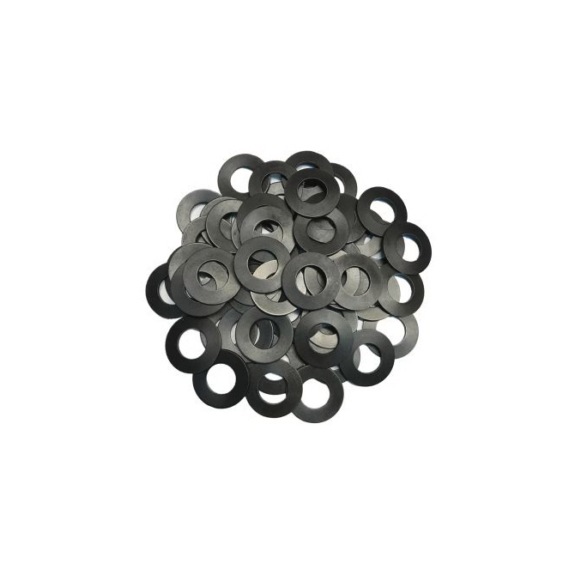

Disc springs 180008
Art.-no. 9412396
Application
Disc springs are used in a wide variety of industry sectors. Disc springs are used in industries such as automotive manufacturing, food processing, chemicals, boilers and aviation.
Execution
- Standard disc spring, 28*12.2*1.5mm
Advantage
- Production according to DIN 2093; high fatigue life; different combinations to obtain any desired load characteristic curve; various special materials and surface treatments possible; high space utilisation compared to other springs using standard dimensions; small deformation at reduced cost and large load capacity.
Delivery
15
Gross Weight | 0.000 kg |
