KEMMLER multi-turning tool holder 45° HSK-T 63-20-93 with internal cooling
Brand: KEMMLER
Art.-no. 23107054
Manufacturer article no. T63.83.20.93
EAN 4250000002283
Application
Turning tool holder for insert holder with coolant supply directly to the cutting edge and for ISO insert holder with bracket clamping for optimal cooling of the cutting edge
Execution
- One turning tool holder, four possible uses
- Left - right - forehead - overhead
- Spray nozzles can be closed for tools with internal coolant supply
Advantage
- Drill hole for RFID chip
- Coolant pressure up to 100 bar
Delivery
1x multi-turning tool holder 45° HSK-T 63-20-93 with internal cooling
 | |

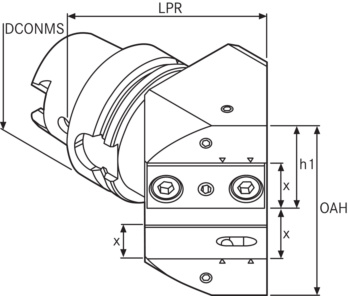

Brand | KEMMLER |
Manufacturer Part Number | T63.83.20.93 |
Tool holding device | HSK |
Tool holding device type | Multi-Swivel Holder |
Projecting length | 93 mm |
External collar diameter | 63 mm |
Coolant supply | Internal axial |
Balancing quality | G 2.5 at 20,000 rpm |
Harmonized System Code | 84661031 |
Gross Weight | 3.600 kg |
