KROEPLIN quick probe H4100 100 150 mm 0.05 mm scale int. IP65 int. meas. inst.

Name: KROEPLIN quick probe H4100 100 150 mm 0.05 mm scale int. IP65 int. meas. inst.
Brand: KROEPLIN
SKU: 33261285

Brand: KROEPLIN

Art.-no. 33261285

Manufacturer article no. H4100

EAN 4053625127382

All versions

Manufacturer information

Specification

Application

For measuring bores, recesses and internal grooves.

Execution

Adjustable tolerance marks
Easy adjustment with rotating housing
1 fixed and 1 movable measuring arm

Advantage

Measured result can be read directly
Manufacturer's warranty extension: If registered on the manufacturer's website within three months of the date of purchase, the manufacturer's warranty is extended by one year. Instructions for this are included in the scope of delivery.

Delivery

With traceable test certificate in box

Technical information


Brand	KROEPLIN
EAN	4053625127382
Manufacturer Part Number	H4100
Design	For internal measurement
Display	Analogue
Type	H4100
Min./max. length measuring range (Meb)	100-150 mm
Scale value	0.05 mm
Measuring arrangement	5
Measuring depth (L)	192 mm
Measuring contact length movable (Hb)	8.5 mm
Measuring contact length fixed (Hf)	8.5 mm
Groove depth max. (A)	8.3 mm
Min. groove width (B)	2.4 mm
IP protection class	IP 65
Data transmission type	No
Harmonized System Code	90178090
Gross Weight	0.940 kg

Documents

Product information

HAHN+KOLB Catalogue (1)

HAHN+KOLB Catalogue 2024-2025

Certificates/ Documents (2)

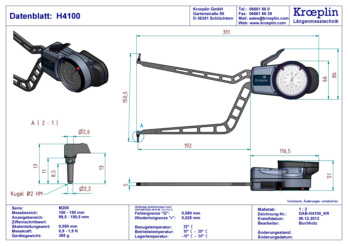

Data sheet

Technical data sheet
