MITUTOYO 3-point internal micrometer Borematic 12–25 mm with spring mechanism

Name: MITUTOYO 3-point internal micrometer Borematic 12–25 mm with spring mechanism
Brand: MITUTOYO
SKU: 32017773

Brand: MITUTOYO

Calibration Group: I

Art.-no. 32017773

Manufacturer article no. 568-925

EAN 4946368636726

All versions

Manufacturer information

Specification

Application

For measuring through holes and short centring shoulders in series.

Execution

LCD digit size 11 mm
with DIGIMATIC interface
Part sets: One electronic unit with multiple interchangeable heads

Advantage

Quick and easy measurement. Suitable for series measurements
330° rotating display unit for easy reading at any working angle

Notes

Factory test certificate only for base unit

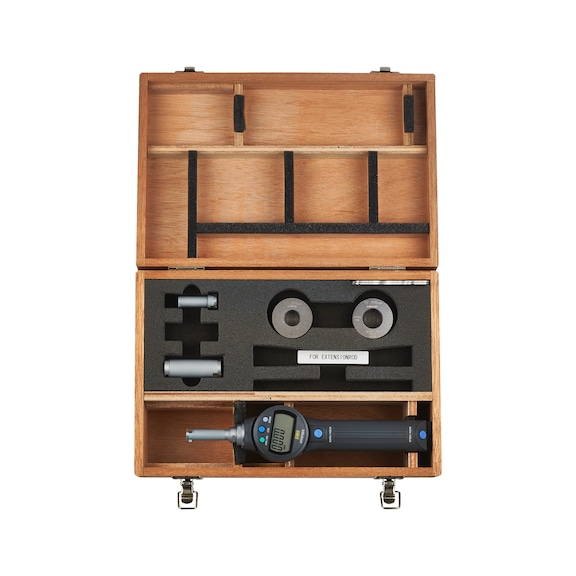

Delivery

Includes box, wrench, battery, factory test certificate, setting rings

Technical information

Brand	MITUTOYO
EAN	4946368636726
Manufacturer Part Number	568-925
Type	Part set
Display	Digital
Min./max. length measuring range	12-25 mm
Digit increment	0.001 mm
Design of measuring contact	Titanium-coated tungsten carbide
Data transmission type	DIGIMATIC
Number of measurement heads	3 PCS
Adjusting ring diameter	16 mm, 20 mm
Digit height	11 mm
IP protection class	IP 40
Functions	ABS function, Absolute function, On/Off, Preset function, Hold-function (AE lock), TOL (Tolerance and warning limits input)
Design	Metric
Calibration Group	I
Number of rechargeable batteries/batteries	1 PCS
Battery designation	1,5 V SR44
Harmonized System Code	90173000
Gross Weight	2.550 kg
