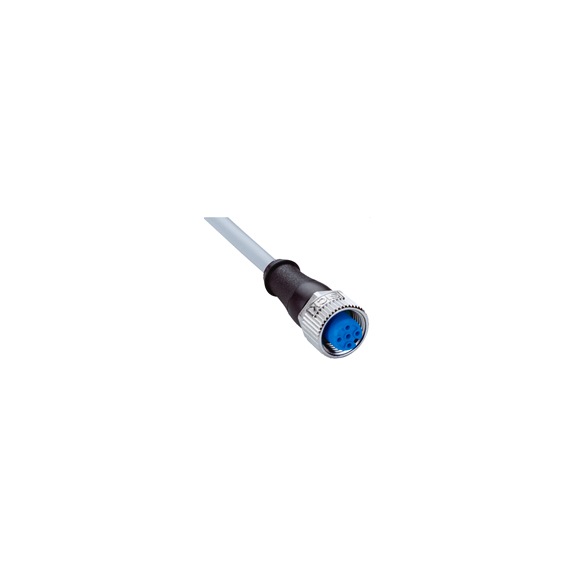

Power and output line YF2A15-050VB5XLEAX
Art.-no. 9404008
Application
Accessory plugs and cables
Execution
- Accessories Group Plugs and Cables Accessories series Connecting cable Connection method A-head socket, M12, 5-pin, straight, A-coded Connection method B head bare wire end Plug connector connector Screw interface Plug connector material TPU Plug connector color black Knurled nut material Die-cast zinc, nickel plated Material, seal FKM Tightening torque 0.6 Nm Wrench opening 13 Cable 5 m, 5-core, PVC Wire sheath material PVC Wire sheath color gray Wire diameter 5.2 mm Conductor cross section 0.34 mm² Shield without shield
Advantage
- Durable, stable, easy to plug
Delivery
42
Gross Weight | 0.000 kg |
Certificates/ Documents (1)
