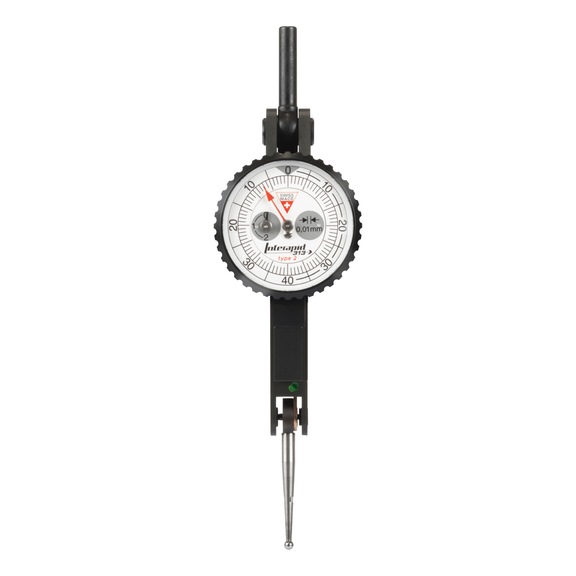

TESA TECHNOLOGY INTERAPID 313-2 dial test indicator, dial face 30.8 mm, measuring range 1.6 mm
Brand: TESA TECHNOLOGY
Art.-no. 33300255
Manufacturer article no. 074111567
EAN 7630041164688
Application
For measuring runout, axial runout, parallelism and flatness deviations. For centring bores, shafts and aligning workpieces.
Execution
- Measuring range up to 1.6 mm, depending on model
- Ruby-mounted precision tool
- Auxiliary pointer as revolution counter
- Rotating shank dia. 4 mm
- Additional dovetail mounts
Advantage
- Graduations arranged around the outer edge. This enables faster, more ergonomic reading of the measured values.
- Additional marking on the rim helps clearly distinguish the two measuring directions
Delivery
With 2 mm carbide-ball indicator contact point, wrench for installing indicator contact points, manual, declaration of conformity
Brand | TESA TECHNOLOGY |
EAN | 7630041164688 |
Manufacturer Part Number | 074111567 |
Minimum order quantity | 1 |
Length measuring range | 1.6 mm |
Scale value | 0.01 mm |
Measurement force | 0.1 N |
Length of measuring sensor from centre of ball | 23 mm |
Material of measuring ball | Carbide |
Ball diameter | 2 mm |
Diameter | 30.8 mm |
Connection thread | M1.4 |
Display | Analogue |
Delivery unit | 1 |
Gross Weight | 0.150 kg |
