Tool trolley W867*D520*H1000

Application

Workshop tool storage and movement to the work station where it is located

Execution

• Tool trolley

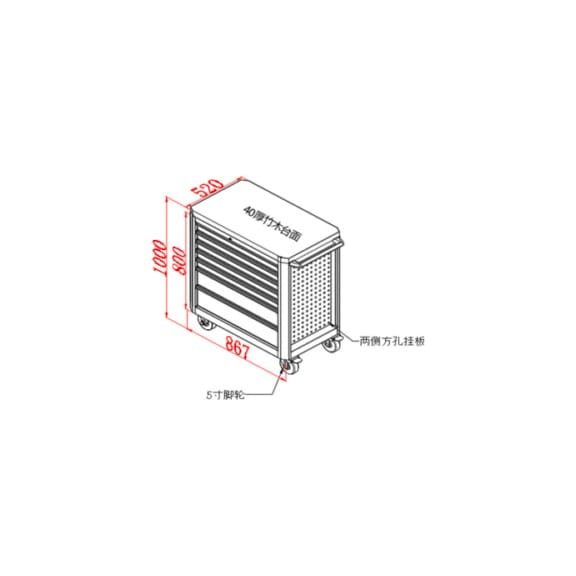

  1.Product size:W867*D520*H1000
  2.40 thick bamboo countertop, 7 drawers in the cabinet, drawer specifications: 5*75, 1*150, 1*175, three sections of the guide rail, drawer fully open each drawer load 40kg, interlocking mechanism. Only one drawer can be opened at a time. Drawer area is about:696:*400.
  3. right handle, two cabinet body concave matrix square hole 10*10. 5 inch caster universal with brake *2, directional *2.
  4. Material: cabinet 1.0, panel 1.2, rail 2 ~ 2.5
  5. Color: door and drawer RAL7016, cabinet body RAL7035

Advantage

• High quality chassis
  Recessed sidewalls protect additional parts attached to the frame within the frame's outer dimensions from damage.
  Rectangular plates on the sidewalls provide individual fixing options, e.g. they can be used with hooks to hang tools or other accessories (bottle and can holders, paper roll holders, waste baskets, etc.) Reciprocating drawer locks, i.e. only one drawer can be opened, thus protecting the cart from tipping over.

Delivery

56
